13801252819 | | | | 循环水旁流处理器
一、产品简介

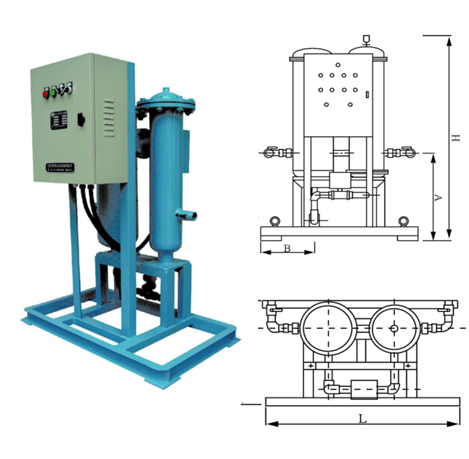

八、F型（开放冷却水系统专用型）规格尺寸
|
选型区
|
外形尺寸
|
明细尺寸
|
外接管尺寸
|
水头损失mm
|
最大功率W
|
|
规格型号
|
适用管径mm
|
长
L
mm
|
宽
W
mm
|
高
H
mm
|
A
mm
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
F
mm
|
进出水通径
mm
|
排污口通径
mm
|
|
FR-SCll-0100F
|
80
|
1450
|
720
|
1260
|
625
|
350
|
590
|
440
|
315
|
190
|
25
|
25
|
6
|
90
|
|
FR-SCll-0200F
|
100
|
1450
|
720
|
1260
|
625
|
350
|
590
|
440
|
315
|
190
|
25
|
25
|
6
|
120
|
|
FR-SC11-0300F
|
150
|
1450
|
720
|
1260
|
625
|
350
|
590
|
440
|
315
|
190
|
25
|
25
|
6
|
160
|
|
FR-SCll-0400F
|
200
|
1450
|
720
|
1260
|
625
|
350
|
590
|
440
|
315
|
190
|
25
|
25
|
6
|
200
|
|
FR-SCll-0500F
|
250
|
1450
|
720
|
1260
|
625
|
350
|
590
|
440
|
315
|
190
|
25
|
25
|
6
|
300
|
|
FR-SCll-0600F
|
300
|
1450
|
720
|
1260
|
625
|
350
|
590
|
440
|
315
|
190
|
32
|
25
|
4
|
500
|
|
FR-SCll-0700F
|
350
|
1450
|
720
|
1260
|
625
|
350
|
590
|
440
|
315
|
190
|
32
|
25
|
7
|
600
|
|
FR-SCll-0800F
|
400
|
1475
|
740
|
1260
|
640
|
350
|
590
|
440
|
315
|
190
|
40
|
25
|
5
|
800
|
|
FR-SCll-0900F
|
450
|
1475
|
740
|
1260
|
640
|
350
|
590
|
440
|
315
|
190
|
40
|
25
|
7
|
900
|
|
FR-SCll-1000F
|
500
|
1500
|
750
|
1260
|
650
|
365
|
590
|
440
|
315
|
190
|
50
|
25
|
4.5
|
1100
|
|
FR-SCll-1100F
|
600
|
1500
|
750
|
1260
|
650
|
365
|
590
|
440
|
315
|
190
|
50
|
25
|
5
|
1300
|
|
FR-SCll-1200F
|
700
|
1750
|
770
|
1260
|
875
|
395
|
590
|
440
|
315
|
190
|
65
|
25
|
4
|
1500
|
|
FR-SCll-1300F
|
800
|
1750
|
770
|
1260
|
875
|
395
|
590
|
440
|
315
|
190
|
65
|
25
|
5
|
1800
|
九、G型（闭式循环水系统专用型）技术参数
1、输入电源：220V，50HZ
2、工作电压：<36V
3、适用水温：0℃-5℃
4、杀菌率：> 99%
5、水头损失：0.2-1.0m
6、军团菌：符合国家标准
7、腐蚀菌：符合国家标准
8、适用水质：以CaCO计
9、总硬度<700mg/L |
 |
十、G型（闭式循环水系统专用型）规格尺寸
选型区 |
外形尺寸
|
明细尺寸
|
外接管尺寸
|
水头损失mm
|
最大功率W
|
|
规格型号
|
适用管径mm
|
长
L
mm
|
宽
W
mm
|
高
H
mm
|
A
mm
|
B
mm
|
C
mm
|
进出水通径
mm
|
排污口通径
mm
|
|
FR-SCll-0100G
|
80
|
950
|
580
|
1320
|
513
|
355
|
120
|
25
|
25
|
0.2
|
50
|
|
FR-SCll-0200G
|
100
|
950
|
580
|
1320
|
513
|
355
|
120
|
25
|
25
|
0.4
|
90
|
|
FR-SC11-0300G
|
150
|
950
|
580
|
1320
|
513
|
355
|
120
|
25
|
25
|
0.7
|
120
|
|
FR-SCll-0400G
|
200
|
950
|
580
|
1320
|
513
|
355
|
120
|
25
|
25
|
1.0
|
160
|
|
FR-SCll-0500G
|
250
|
950
|
580
|
1320
|
513
|
355
|
120
|
25
|
25
|
1.0
|
220
|
|
FR-SCll-0600G
|
300
|
950
|
580
|
1320
|
513
|
355
|
120
|
32
|
25
|
1.0
|
300
|
|
FR-SCll-0700G
|
350
|
950
|
580
|
1320
|
513
|
355
|
120
|
32
|
25
|
1.0
|
500
|
|
FR-SCll-0800G
|
400
|
950
|
580
|
1320
|
513
|
355
|
120
|
40
|
25
|
1.0
|
600
|
|
FR-SCll-0900G
|
450
|
1000
|
900
|
1320
|
513
|
355
|
120
|
40
|
25
|
1.0
|
800
|
|
FR-SCll-1000G
|
500
|
1000
|
900
|
1320
|
513
|
355
|
120
|
50
|
25
|
1.0
|
900
|
|
FR-SCll-1100G
|
600
|
1000
|
900
|
1320
|
513
|
355
|
120
|
50
|
25
|
1.0
|
1100
|
|
FR-SCll-1200G
|
700
|
1100
|
1220
|
1320
|
513
|
355
|
120
|
65
|
25
|
1.0
|
1400
|
|
FR-SCll-1300G
|
800
|
1100
|
1220
|
1320
|
513
|
355
|
120
|
65
|
25
|
1.0
|
1700
|
| | | |
