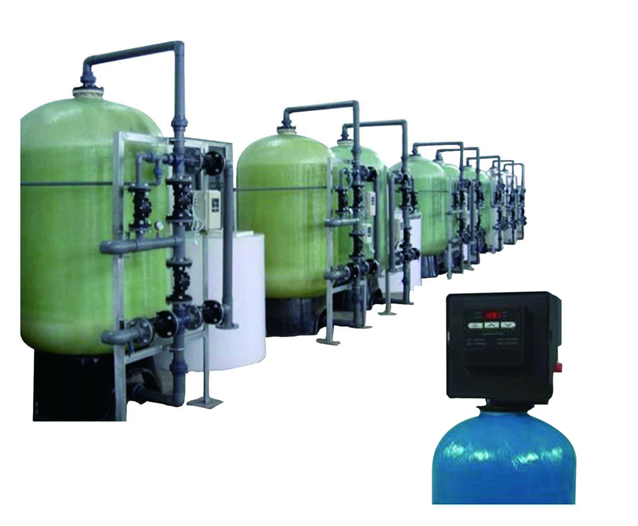

软化水处理设备

规格型号		产水量 M³/H	树脂罐(mm) DxHx个数	盐罐(mm) DxHx个数	装填量质量(kg)	进出水管径 DN(英寸)	整机外形尺寸长x宽x高 LxWxH(mm)	运行方式
1	FRA-200	0.5	200x1200x1	300x600x1	20	3/4	1000x500x1800	单阀单罐系统,再生时停止生产2小时，流量/时间型。
2	FRA-250	1	250x1400x1	300x600x1	40	3/4	1000x500x1800
3	FRA-300	2	300x1650x1	400x800x1	60	1	1050x540x1900
4	FRA-400	4	400x1650x1	400x800x1	100	1	1150x540x1900
5	FRA-500	6	500x1900x1	500x900x1	160	1-1.5	1450x750x2100
6	FRA-600	8	600x1900x1	660x1200x1	240	1.5	1600x750x2300
7	FRA-750	10	750x1900x1	760x1200x1	380	1.5	1600x760x2300
8	FRA-900	15	900x1900x1	900x1200x1	550	2	1800x900x2400
9	FRA-1000	20	1000x2000x1	1000x1200x1	750	2	2033x1100x2650
10	FRA-1200	30	1200x2000x1	1200x1500x1	1000	3	2500x1400x2750
11	FRA-1400	40	1400x2100x1	1370x1630x1	1500	3	3000x1400x2850
1	FRB-250	2	250x1400x2	400x800x1	80	3/4	1500x540x1900	单阀双罐一用一备，交替连续供水流量型。
2	FRB-300	3	300x1650x2	400x800x1	120	1	1600x540x1900
3	FRB-400	4	400x1650x2	500x900x1	200	1	2200x750x2100
4	FRB-500	6-8	500x1900x2	500x900x1	320	1.5	2300x750x2300
5	FRB-600	8-12	600x1900x2	900x1200x1	480	1.5	2300x900x2300
1	FRC-900	15	900x1900x2	900x1200x2	1100	2	3600x1000x2400	双阀双罐一用一备，交替连续供水流量型。
2	FRC-1000	20	1000x2000x2	900x1200x2	1500	2-3	3800x1200x2650
3	FRC-1200	30	1200x2000x2	1200x1500x2	2000	3	4800x1200x2750
4	FRC-1400	40	1400x2100x2	1370x1630x2	3000	3	6200x1400x2850
5	FRC-1500	50	1400x2400x3	1370x1630x2	4000	3	6500x1400x2900
1	FRD-1200	70	1200x2000x2	1370x1630x2	2000	3	4200x1400x2800	双阀双罐系统同时供水交替再生，流量型。
2	FRD-1400	80	1400x2100x2	1370x1630x2	3000	3	6200x1400x2800
3	FRD-1600	100	1600x2400x2	1580x1800x2	4000	3	6500x1400x2900

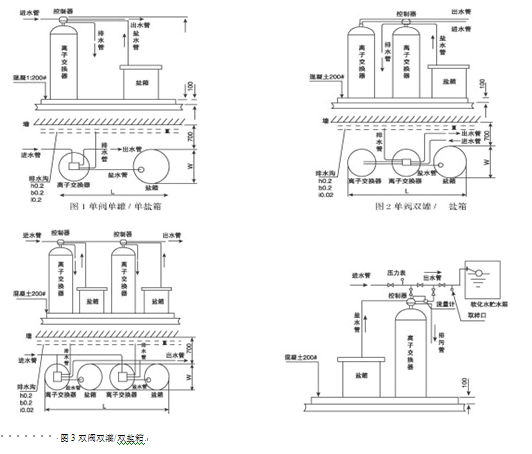

六、软化水处理设备选型说明及设备安装示意图
FRA为单阀单罐型                  FRB为单阀双罐一用一备型
FRC为双阀双罐一用一备型         FRD为双阀双罐同时供水型

（A）Fleck自动软水设备安装示意图

（B）Autotrol自动软水设备安装示意图
